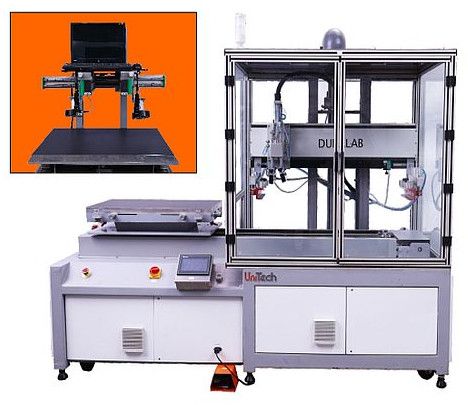

Visionprint Fully Automatic CCD Registering Screen Printer

VISIONPRINT screen printing machine is suitable for shorter print runs due to its simple & fast loading unloading mechanism of screen Printing frames. The design of the machine ensures :

• Safety of the operator

• Easy to service

• Effortless operation

• Occupies lesser production space

VISIOPRINT screen printing machine has self diagnostic closed loop system which continuously monitors its critical parts & any fault will be exactly identified on the LED panel to drastically reduce breakdown time.

Features

• Suitable for precise screen printing for Dial printing, membrane keyboards, blood sugar tester, EL panel, touch panel, ITO conductive glass / film etc.

• High accuracy of vacuum table flatness

• CCD visual auto registering, three sets of servo motor are equipped for vacuum table

• Equipped with unique air locking and hydraulic buffer function for printing accuracy

• Upgraded Precision : Three servo motor are to control X-Y-T axis direction, to obtain accuracy within 20µm

• Servo motor direct driven solid printing torque, complete digital control, full stroke extreme stable speed motion

• Equalizing control : squeegee / flood coater with digital equalized system control, air pressure can be preset (3~62 kgf) on touch screen

• Safety Protection : Ready, standby or error indication, safety door barrier, emergency stop switch, Maximum safety protection

Optional

• Auto loading - pick and place unit

• Cleaning roller can be selected to pick up dust or particles rapidly

• Anti-static to eliminate electrostatic on substrate for smooth printing
